Maintenance
and Lubrication of 200 Series Strikes
Under normal usage the 200 strike should
be cleaned and lubricated once a year to maintain its
reliability. In applications with high usage or dirty
conditions, more frequent service may be necessary.

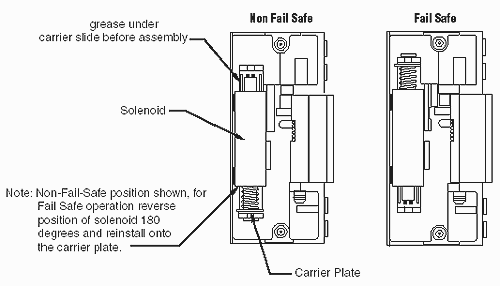

Lubrication points are identified in the illustration.
When servicing a 200, inspect the internal parts for
excess wear for breakage and lightly lubricate per the
instructions. Lubricate with HPG
Grease , available here.
Note: Never lubricate
any strike with oil, such lubrication collects dirt
and forms an abrasive and sticky compound that may affect
the function of the strike.
To Inspect and Lubricate the Strike:
|
-
Remove the strike from the face plate held on by
four (4) 8_32, 1/4 FHPMS.
Remove the strike frame from the strke.
-
Remove the top cover, held on by two (2) 6-32 x
3/8 FHPMS.
-
Remove the solenoid from the strike case.
-
Remove the solenoid slide carrier from the case.
-
Check and remove any old excess lubricant in the
case and the slide carrier.
-
Lightly lubricate the area in the case where the
slide career surface rests
-
Reinstall the slide carrier into the case.
-
Check the solenoid and plunger for excess wear,
dirt, grime, or oil.
-
Reinstall the solenoid assembly to the case.
-
Reinstall the top cover, keeper guard and face
plate.
|
 |
|
|
